Atelier Montijo

LOFTS

2020
dwelling
Montijo, Portugal

The building under study reflects Montijo's industrial heritage, which has gradually been disappearing to make way for bland, generic housing developments. Located in the historic centre, the building (formerly warehouses belonging to an olive oil exporting company), although not formally recognised as architectural heritage, represents significant material and cultural capital. Its location is increasingly affected by flooding during the winter months.

Historically, the riverfront has been central to the town’s economic and social life, but rising water levels and storm surges have increasingly threatened local infrastructure, homes, and natural habitats. In recent years, climate change has exacerbated the frequency and intensity of floods, prompting calls for improved flood defenses and sustainable urban planning.



The project seeks to engage with the spatiality of this building, taking into account new programmatic needs and technical requirements to ensure its survival into the future. The new programme is housing, with complete creative freedom given to consider which typologies might make sense within a structure such as this.



"There is a crack in everything, that's how the light gets in”

Anthem, Leonard Cohen, 1992

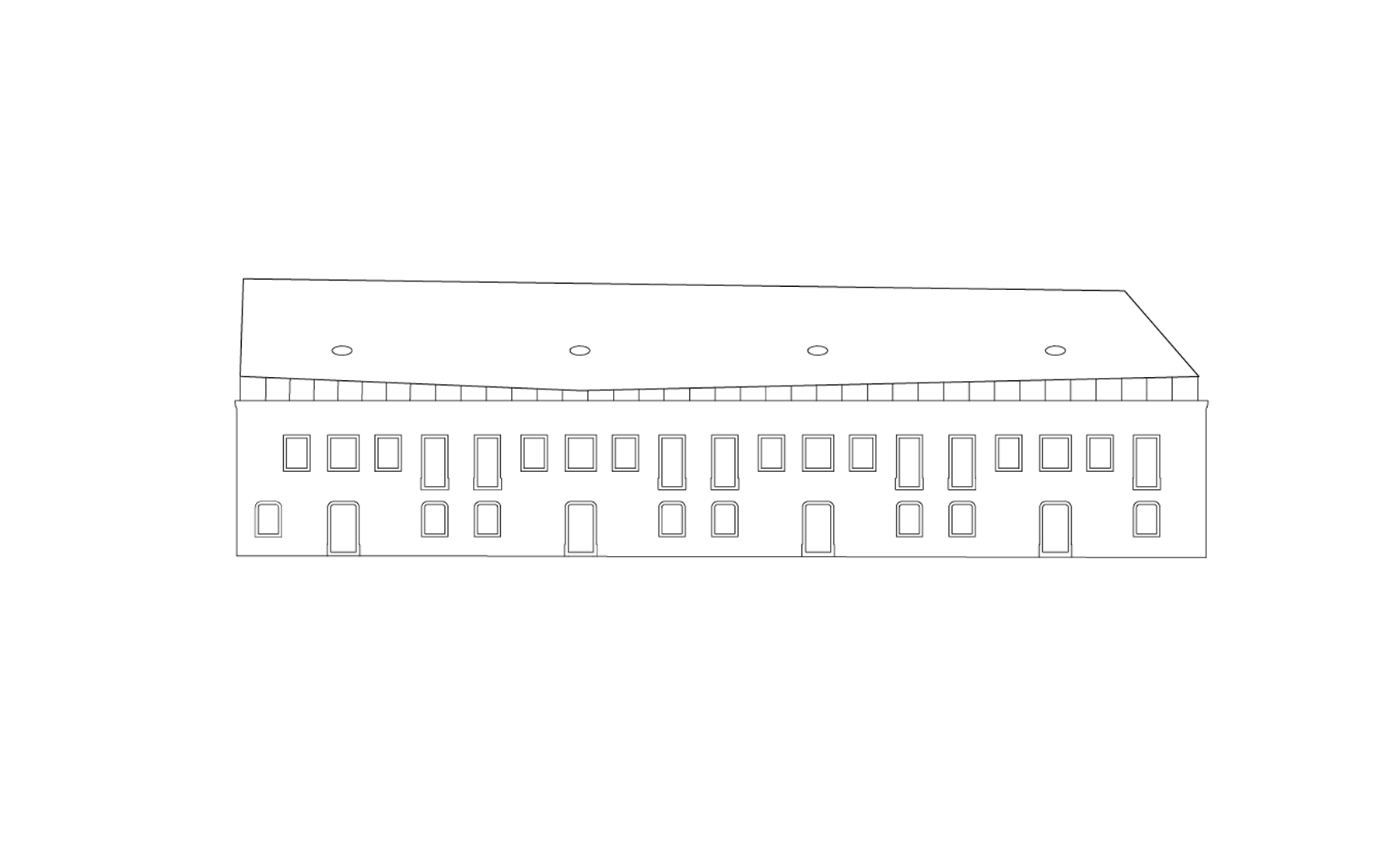

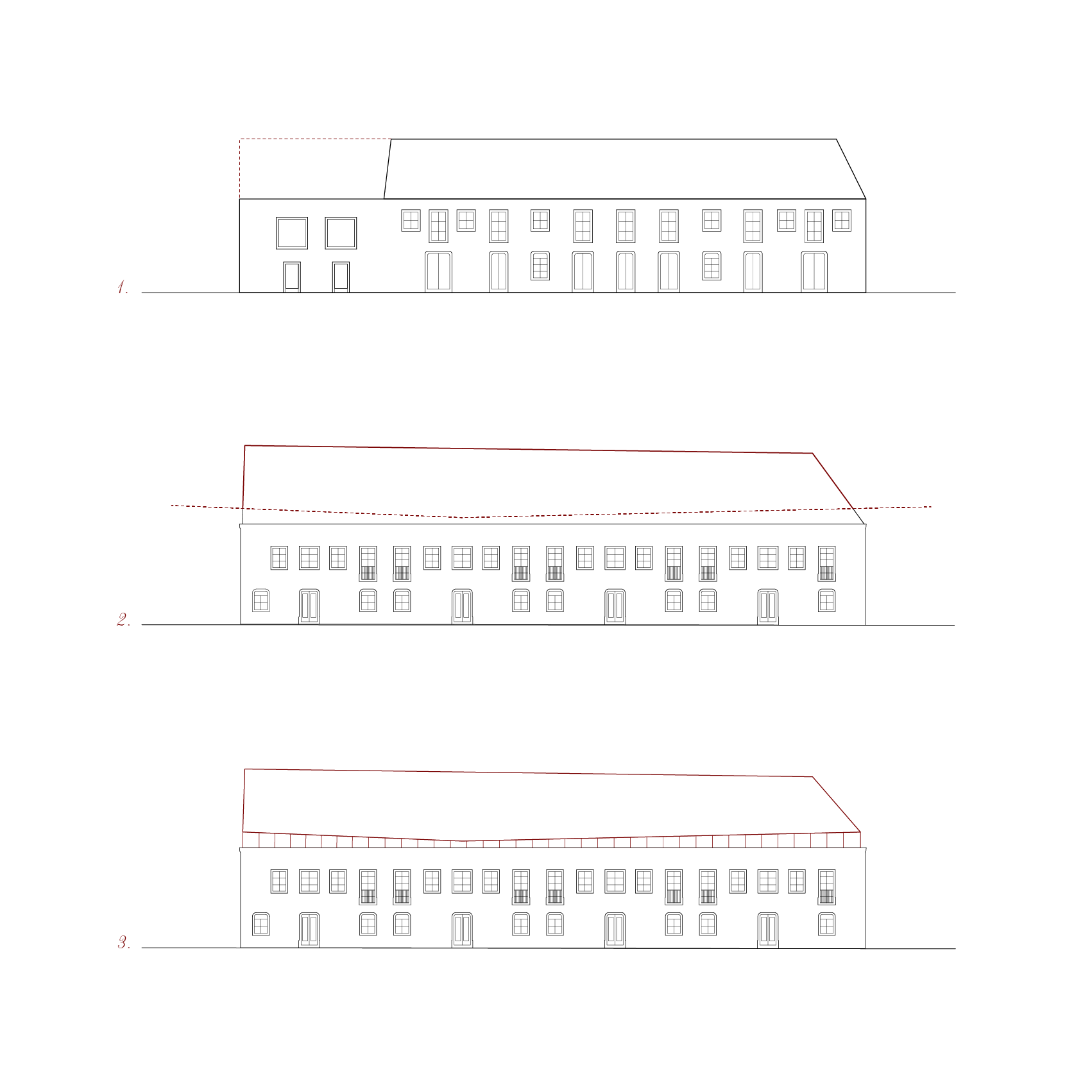

Taking advantage of the spatial opportunity offered by the existing roof configuration, the roof has been redesigned to accommodate a new floor, creating an inhabited structure that pulls away from the façades to lend the intervention a sense of lightness. This detachment creates a “crack” that is used as a terrace, where the building’s parapet becomes a balcony.









The building's organisation is structured around four cores, which define all access points and circulation systems, with entry possible from both fronts: to the east via Praça Gomes Freire de Andrade (lift), and to the west via Rua Tenente Valadim (stairs).



The ground-floor units will be partitioned according to the layout of the infrastructural cores, as well as by a longitudinal division running through the centre of the building, with the typology consisting of small lofts. The first-floor units run transversally, spanning from one side of the building to the other, and feature two terraces with views over the Tagus and the city, with a duplex typology.

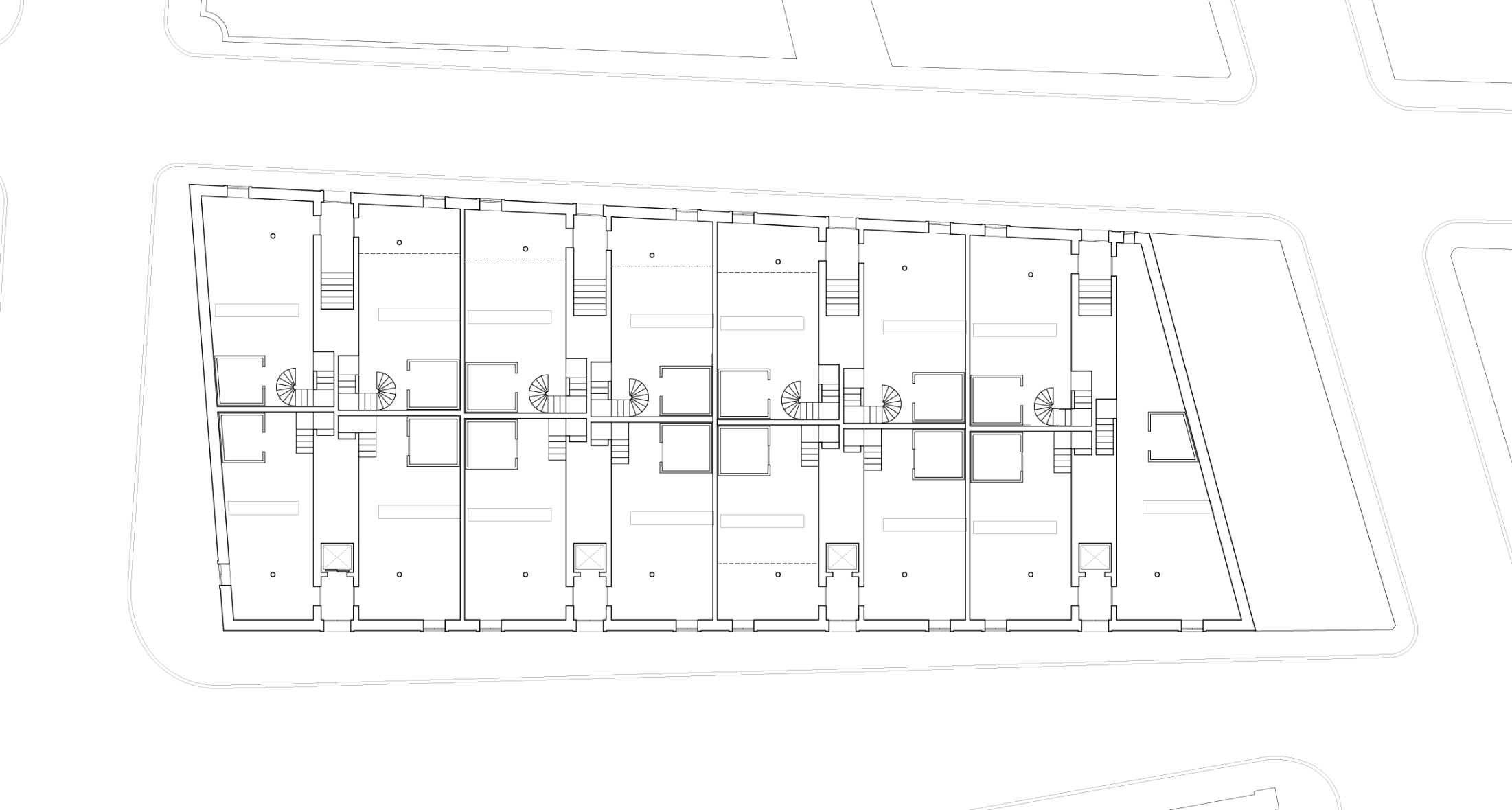

Ground-floor
Ground-floor

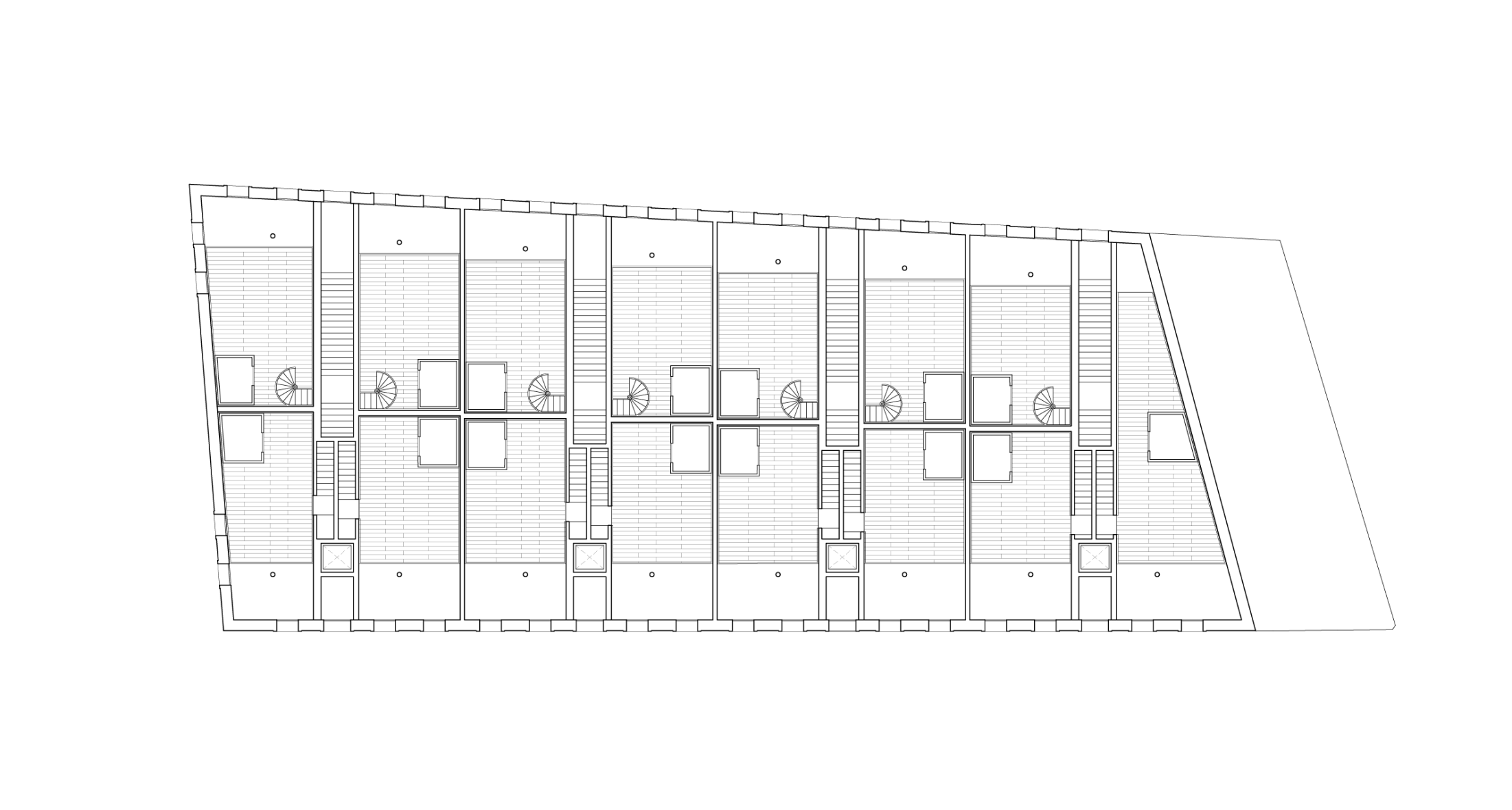

1st floor
1st floor

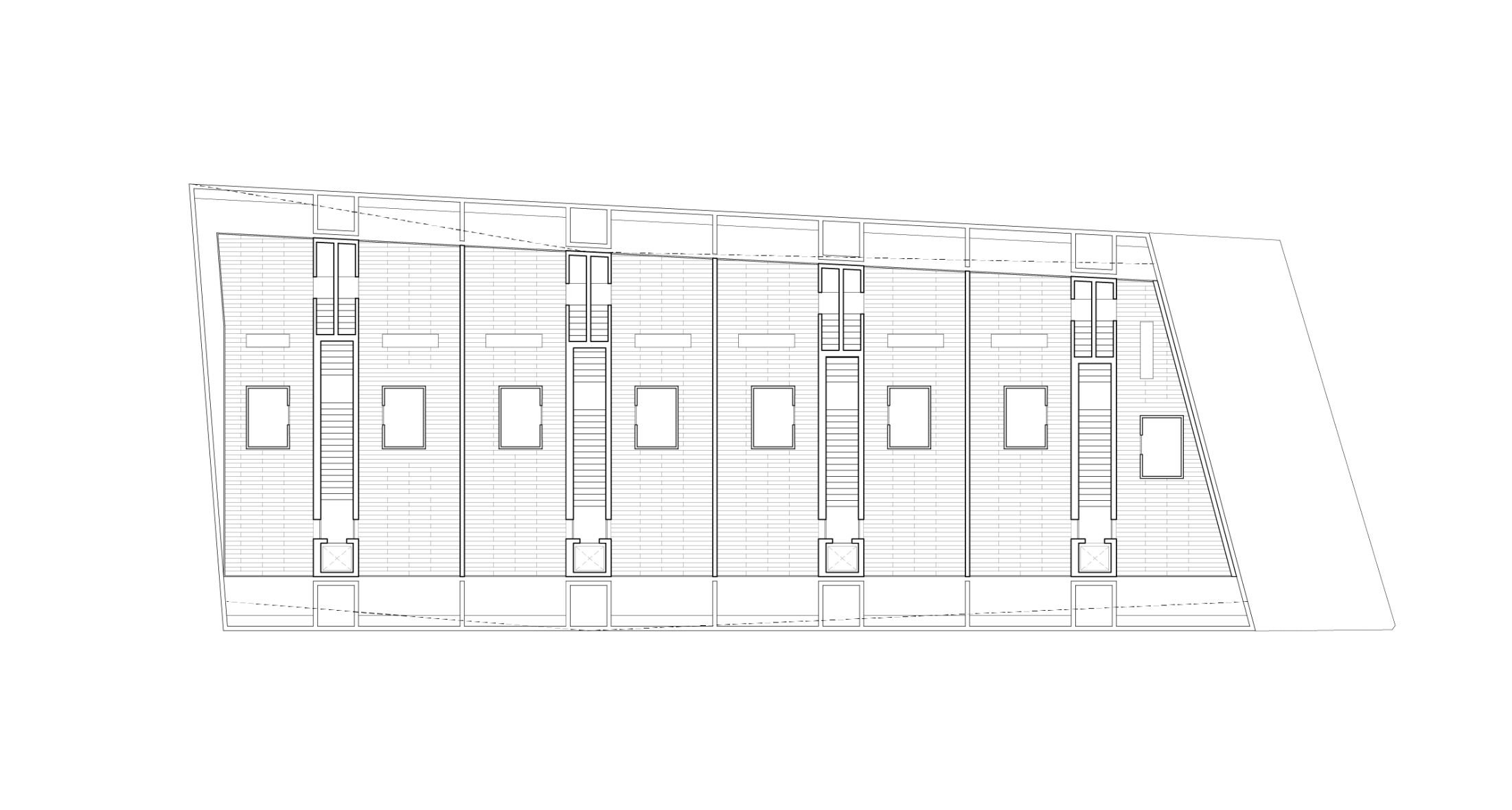

2nd floor
2nd floor

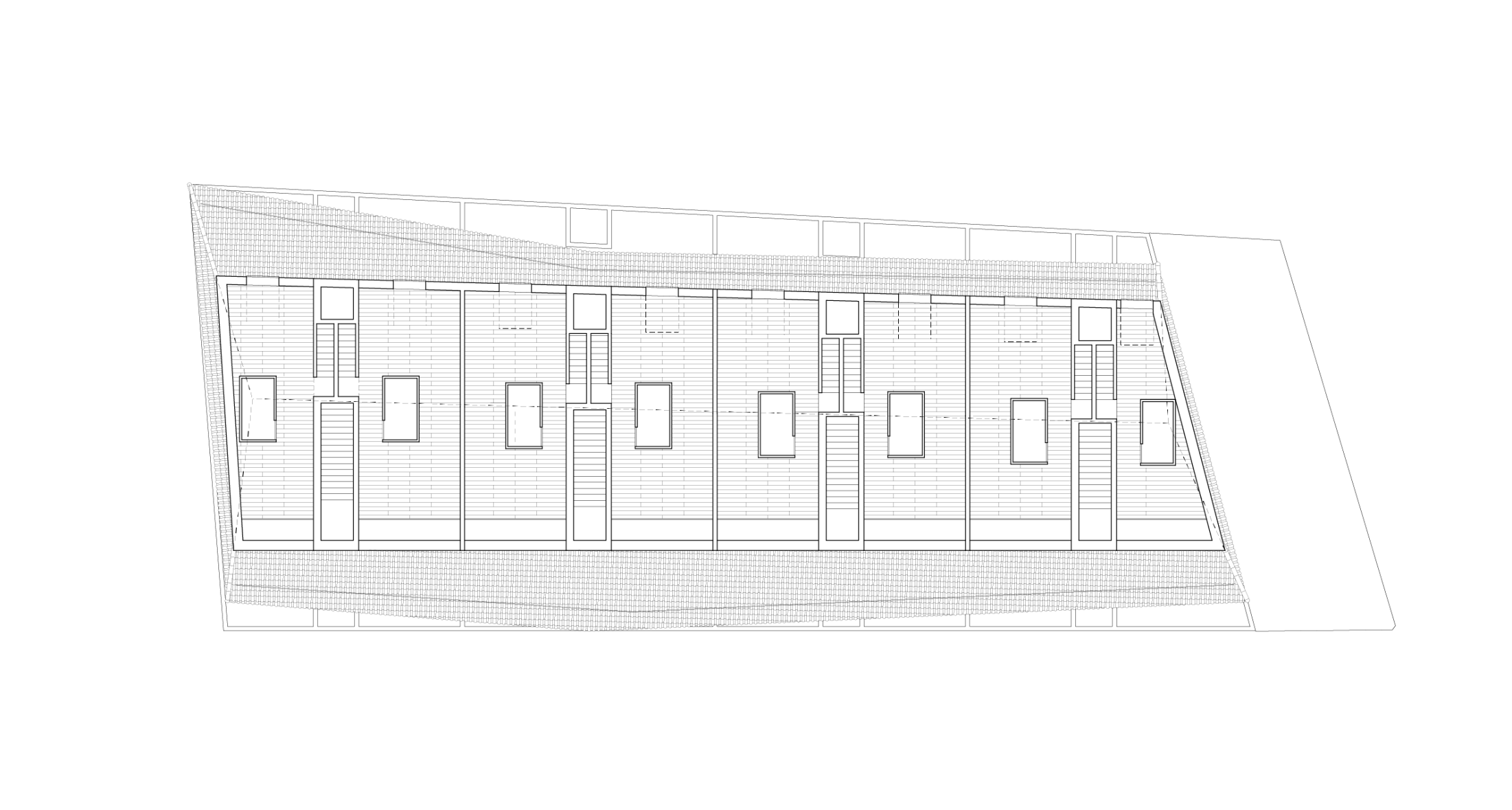

3rd floor
3rd floor

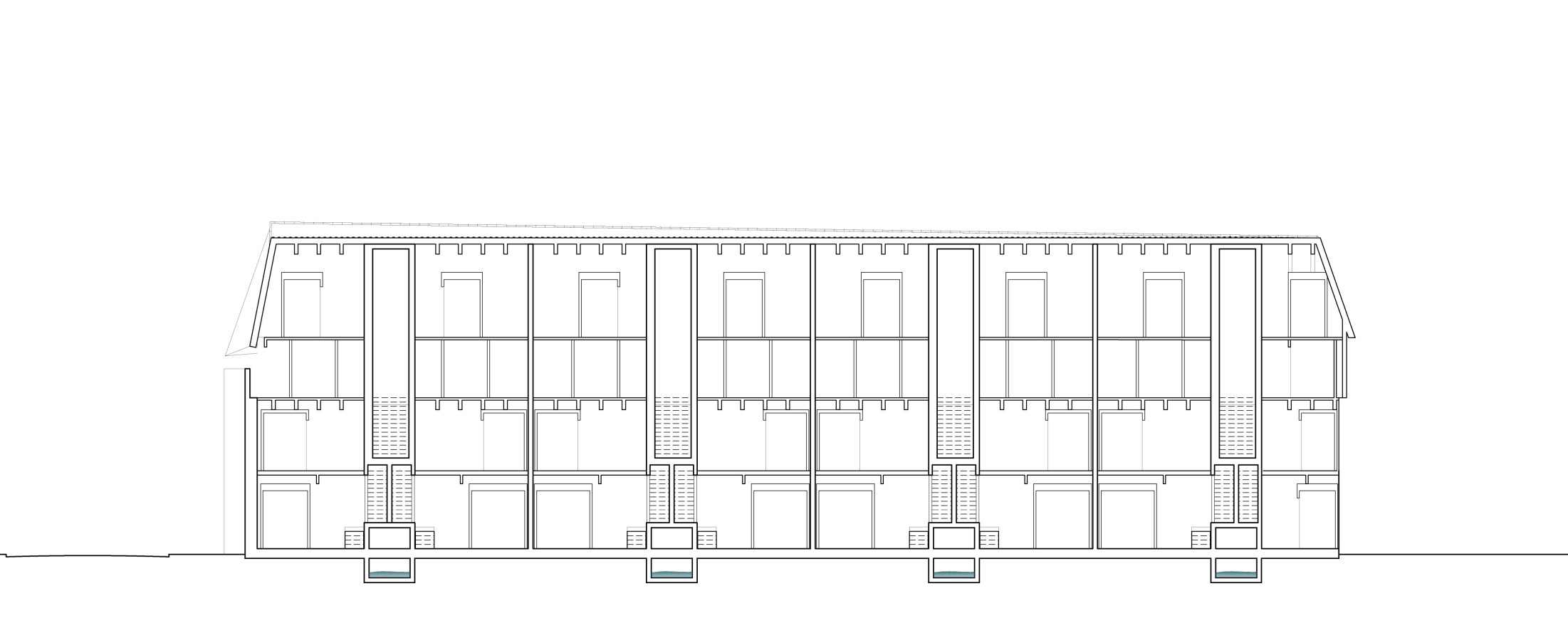

Longitudinal section
Longitudinal section
Duplex
Duplex
Lofts
Lofts

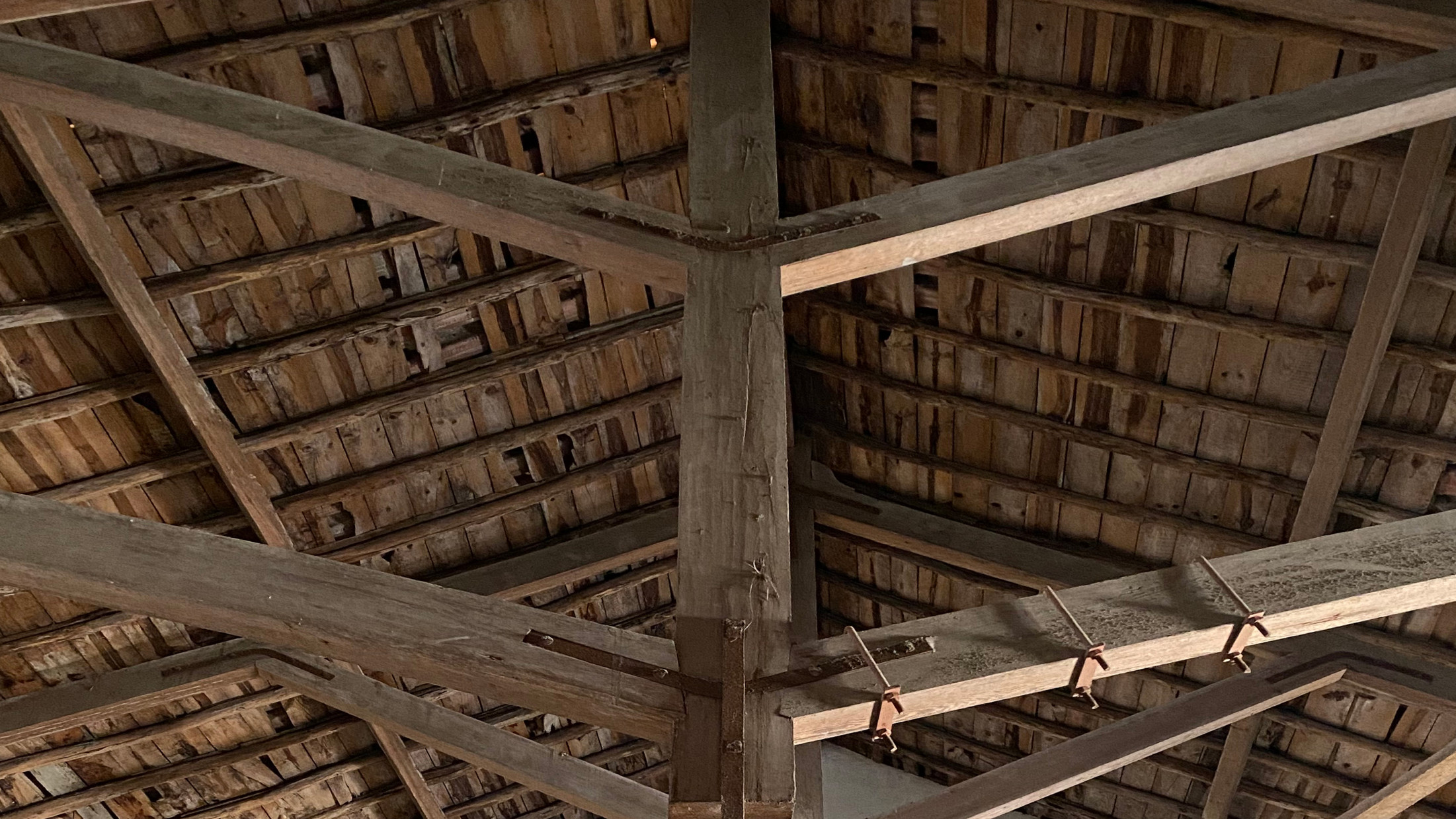

The proposal thus seeks to recover the essence of the building through its image, spatiality, memory and impact on the city, drawing on the two constructive systems that define the building's identity: mass timber working in tension and masonry working in compression, alongside the presence of a large gabled roof clad in tile.



A hybrid solution is proposed, in keeping with the character of the existing building, where timber structures, metal columns and load-bearing masonry walls are found together. The proposal thus recovers this structural language of tension and compression.

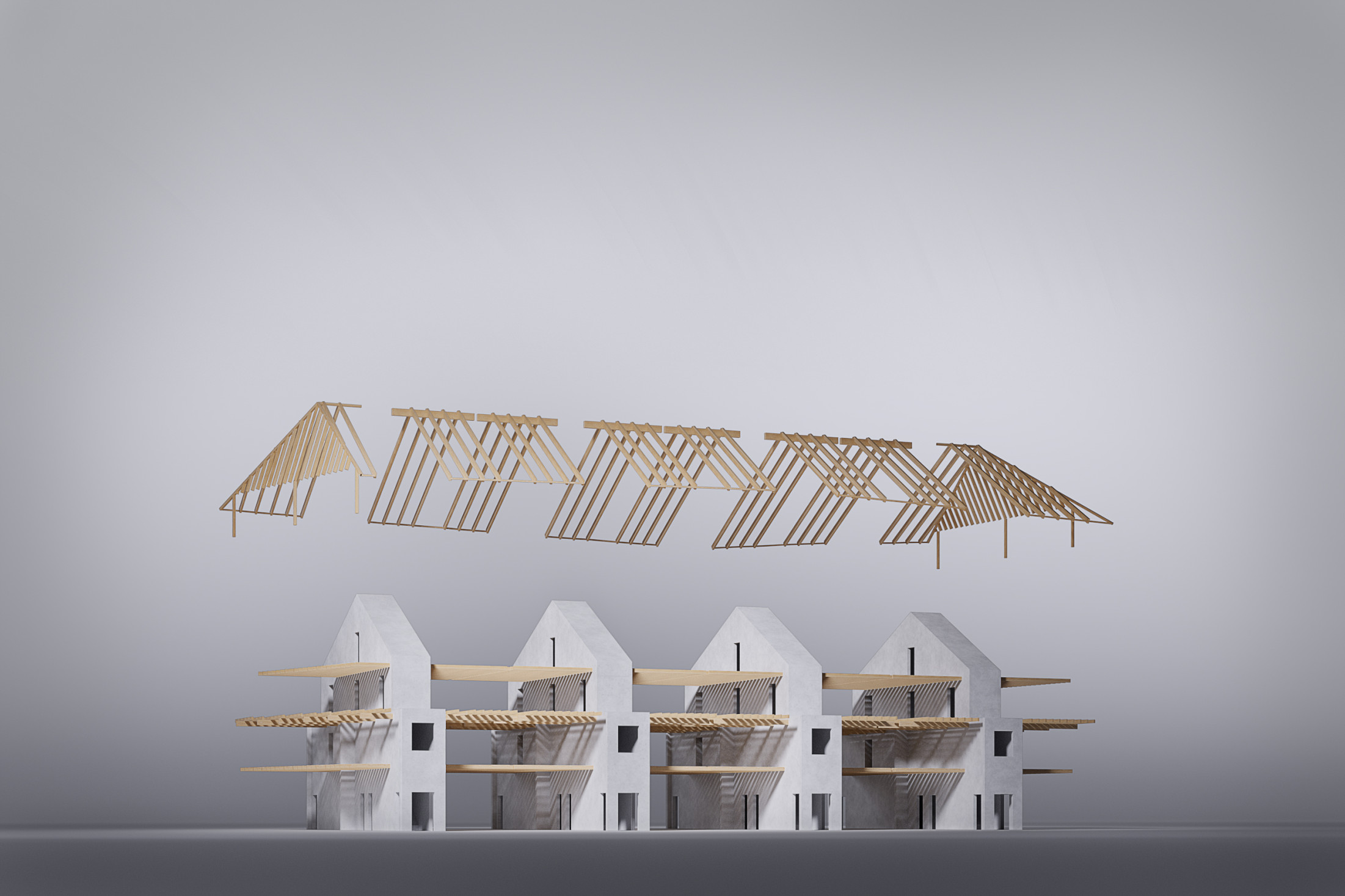

Wooden structure + concrete cores
Wooden structure + concrete cores

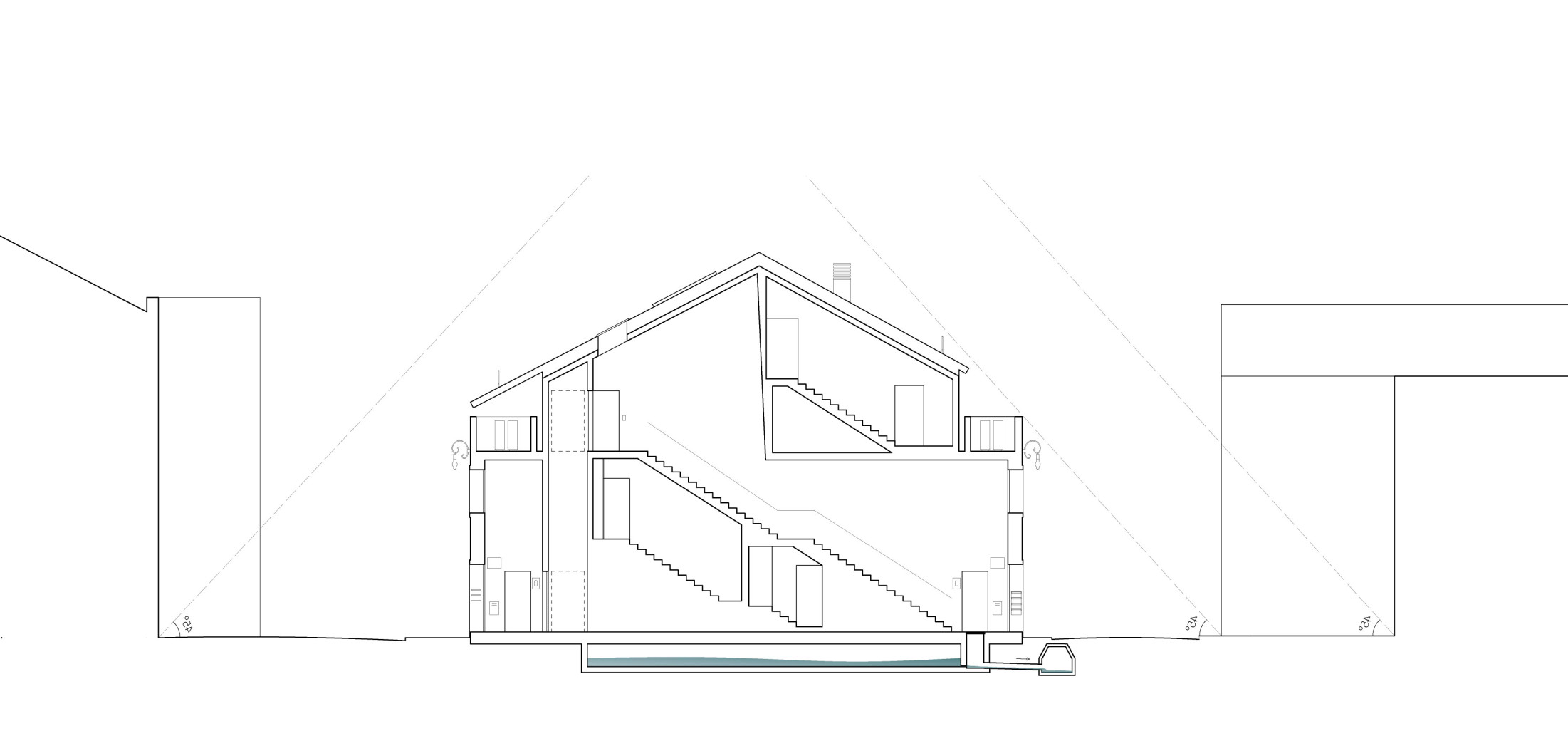

Section
Section

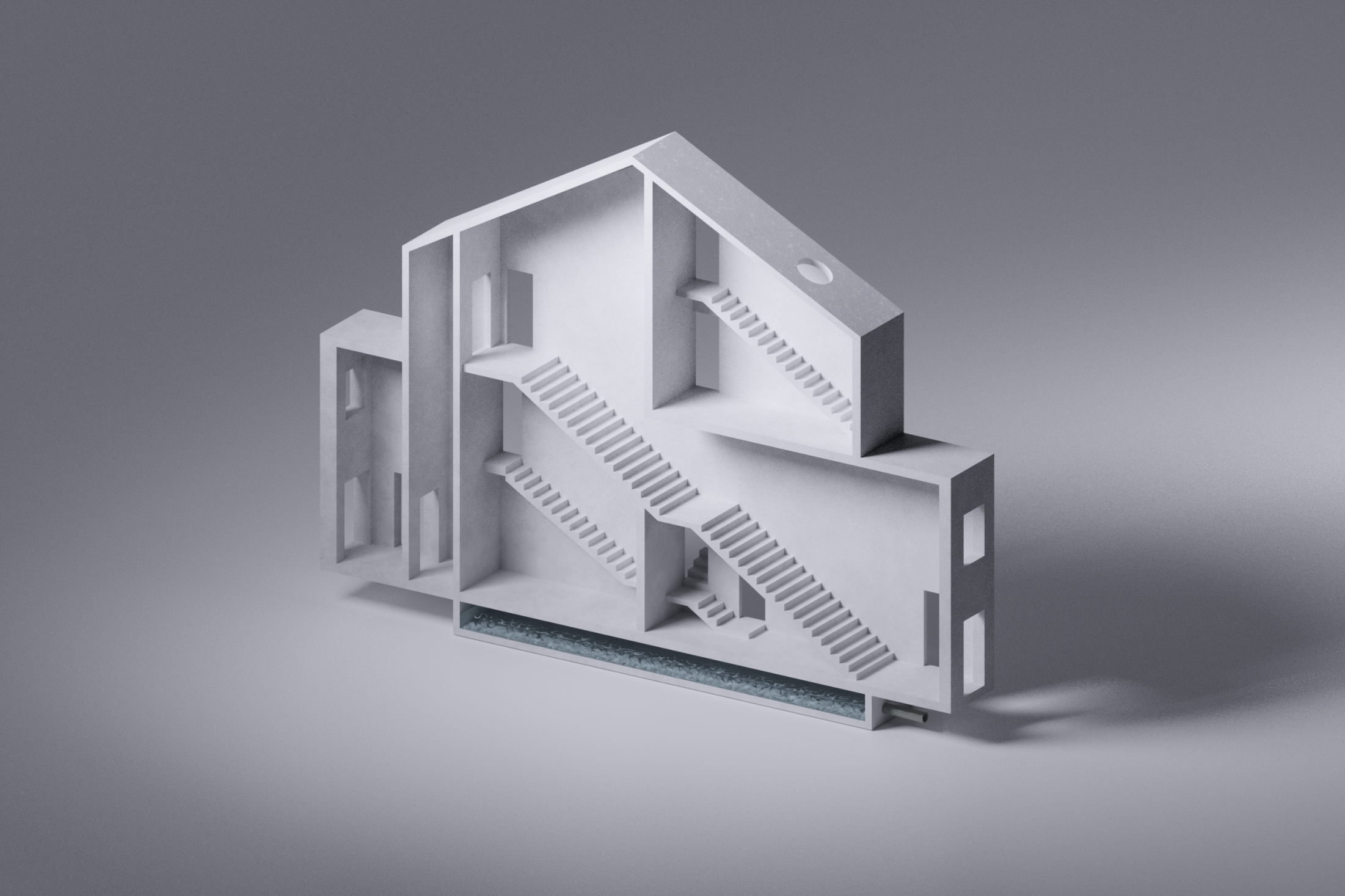

Concrete core circulation
Concrete core circulation

The cores are conceived as infrastructural elements, housing the bathrooms and service ducts — in short, all necessary building technical infrastructure. In addition, to mitigate the impact of stormwater discharge, these same cores also function as retention basins, preventing the rapid rise of water in public spaces during periods of rainfall.



In this way, the building transcends both program and context, standing not merely as housing but as an urban and civic gesture.

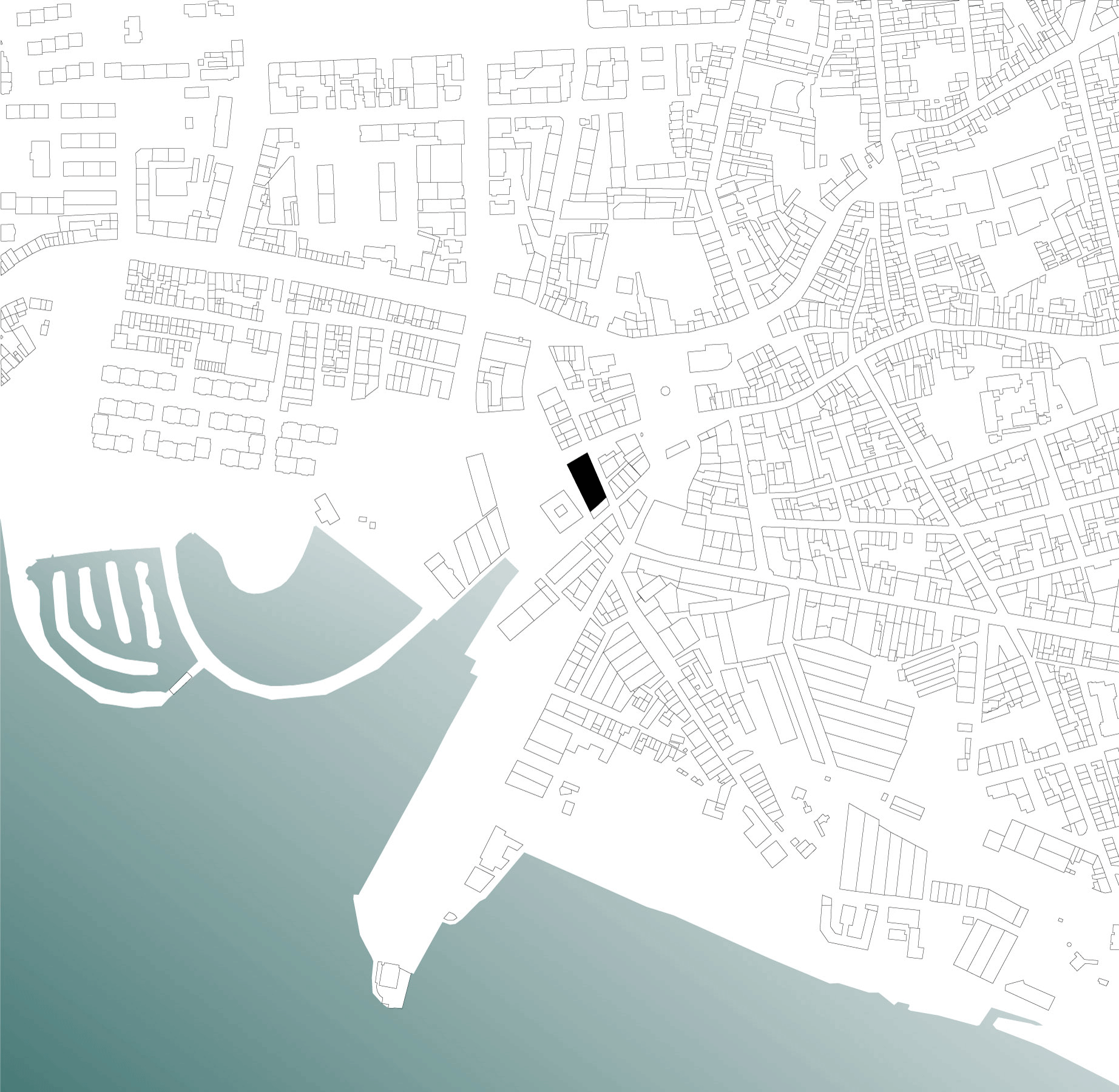

Montijo’s flood-prone riverfront
Montijo’s flood-prone riverfront

Year – 2020 | ...
Client – SlowLiving Portugal

Location – Montijo, Portugal
GPS - 38°42'30.8"N 8°56'56.1"W
Site Area | Area – 902sq.m | 2.757sq.m
Budget –  Undisclosed
Status – licensing

Partners – Albuquerque Goinhas, Cristina de Mendonça, Nuno Griff

Project Team – Alvaro llera Garcia

Engineering – Nuno Gomes Figueiredo (Inline)

Photography – EMBAIXADA
